Harvest MAT-50 Couterpoise Magnet Mat for HF and 6M Mobile antenna

Harvest MAT-50 Couterpoise Magnet Mat for HF and 6M  Mobile antenna

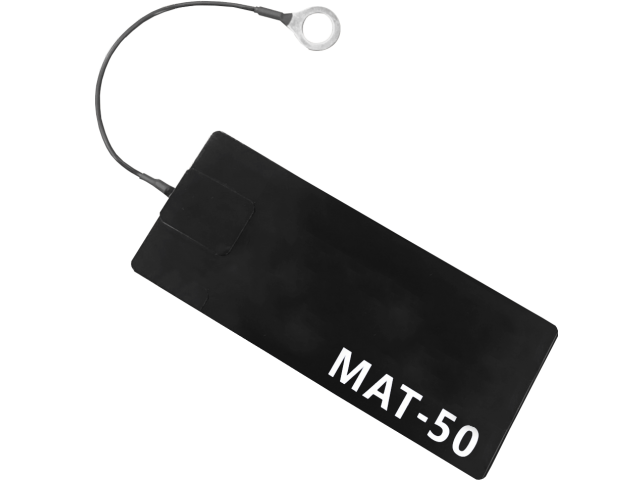

In the antenna of the HF band, we had to take the earth ground securely, but this MAT 50 is a magnetic sheet that can get the body ground only by pasting it on the top or side of the car body. It is possible to correspond to the 3.5 MHz band with this product's two-piece specification. *

For 50 MHz band operation, it is possible to disconnect the cable to 20 cm or less and connect the attached terminal and use it. Also, when using the 3.5 MHz band (2 sets), the 50 MHz band may become unusable.

Usable frequency range: 7 ～ 50MHz
※ Using 2 sets of this product can reach     3.5MHz frequency band
Input resistance: 500W (SSB), 200W (FM / CW)
Heat resistance: -20 ℃ ～ 90 ℃
Adsorption degree: below 110 km / h (no wind)
Dimensions: 80 x 195 mm (sheet body)
Wire length: about 20 cm
Weight: about 55 grams (including wires and terminals)
Material: adhesive resin magnet (with pure aluminum foil)
