Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070R 2m/70cm V/UHF Dual Band Mobile Antenna

$44.95

Brand:
Sirio
Product Code:
SIR-DBMA-270R
In Stock

Ex Tax: $44.95

Qty

Description
Reviews (0)

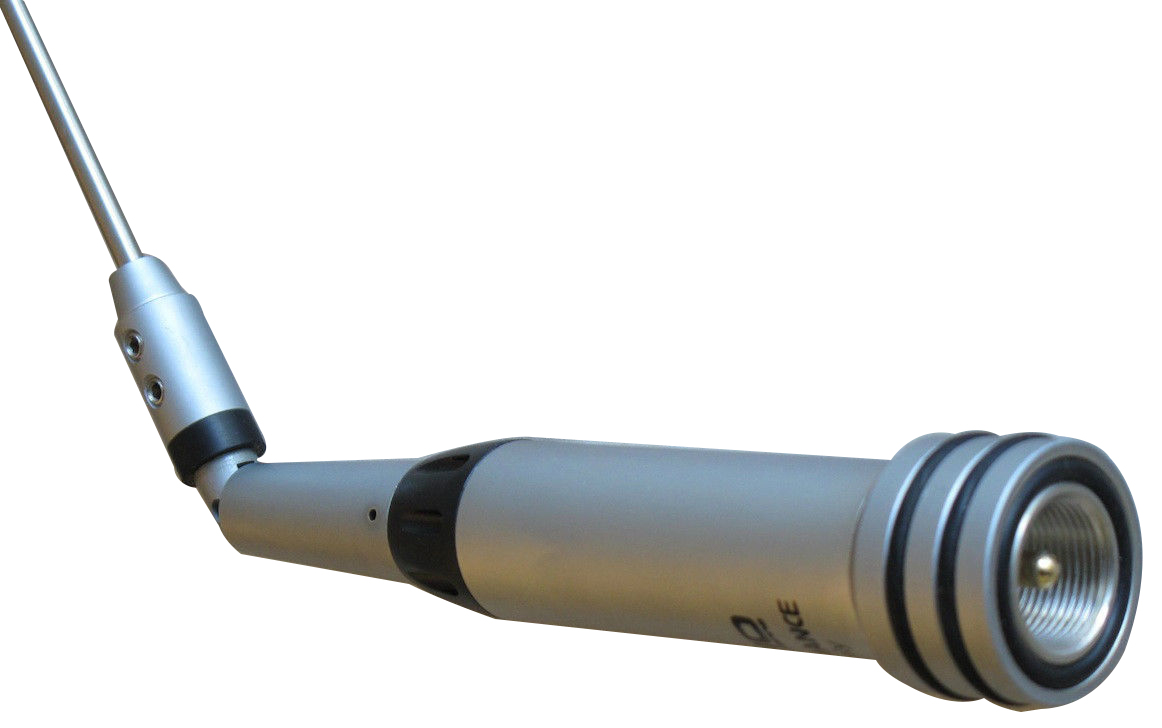

Dual-band vehicular antenna working on 2m and 70 cm bands. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90o tilting without using keys or tools. Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, "Teflon" insulator and silicone rubber gasket for a perfect waterproofing.

Works for for VHF 143-149 MHz, UHF 440-450 MHz

Features:

Mobile antenna, Dual-band

Omnidirectional

VHF band Low-gain, UHF band High-gain

Protection from static discharges DC-Ground

17/7 PH stainless steel cylindrical whip

90° tiltable whip and detachable for car-washes access

Wide range of optional mounting bases available

Electrical Data

Type: VHF 1/2 λ, UHF 2 x 5/8 λ Colinear

Frequency range @ SWR ≤2: VHF 143-149 MHz, UHF 440-450 MHz

Impedance: 50Ω

Radiation (H-plane): 360° omnidirectional

Polarization: linear vertical

Gain: HP 2070 R: VHF 0.6 dB, UHF 4.6 dB ref. to a λ /4 whip

Max Power (CW) @ 30°C: VHF 150 Watts, UHF 100 Watts

Grounding protection: all metal parts are DC-grounded, the inner conductor is coupled capacitively

Conector: UHF-male (PL 259)

Mechanical Data

Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon

Height (approx.): HP 2070 R: 1000 mm

Weight (approx.): HP 2070 R: 300 gr

Tags: vhf/uhf dual band antenna
